The Units option is used to manage units associated with measurements. Units can be setup using this menu option. The MET/TEAM default database contains many commonly used Units. See below for a list of the default Units.

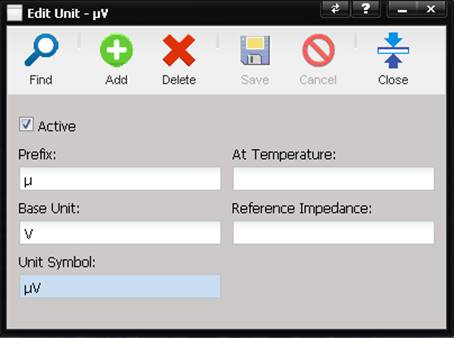

·         Active – If checked, the Unit is available on the Units pick lists.

·         Prefix – The prefix of the Unit of measurement.

·         Base Unit – The Unit of measurement.

·         Unit Symbol – The symbol used for the Unit of measurement which is automatically generated by concatenating the prefix and base unit.

o   For example: if µ is entered for the prefix and V for the base unit, the Unit Symbol will be µV.

·         At Temperature – The temperature as which the Unit is applicable.

o   For example: when used in pressure units At Temperature would be inHg@60F

·         Reference Impedance – Used to convert dBm to Watts or volts and visa-versa.
